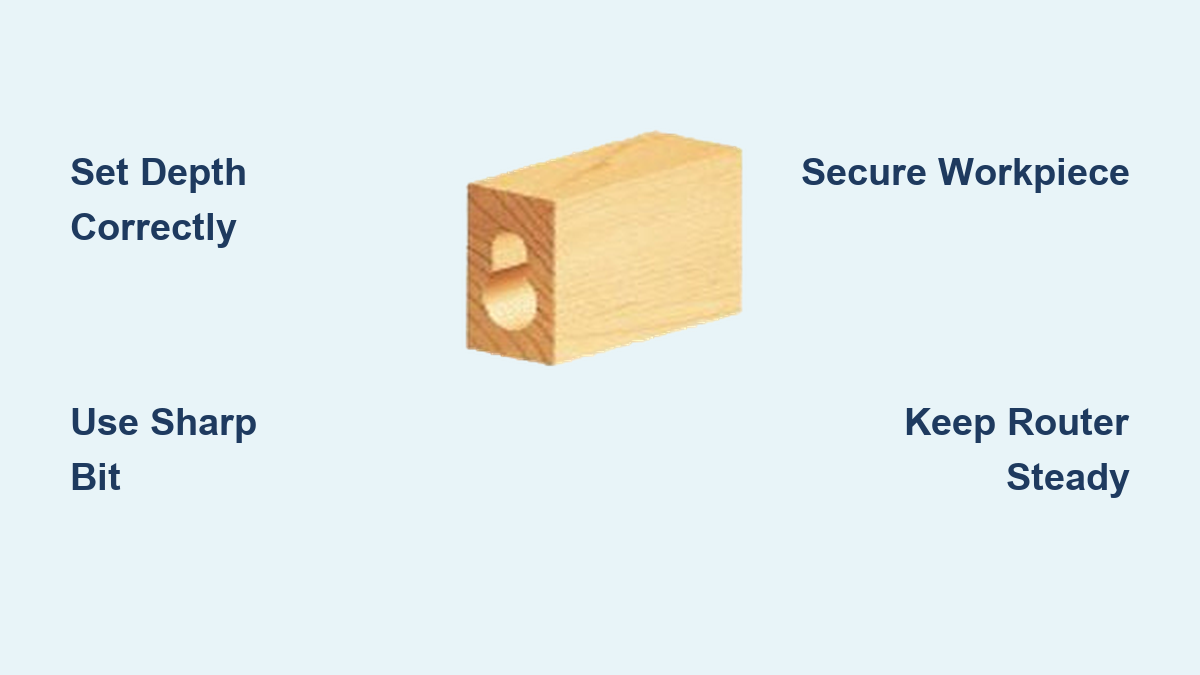

How to Use a Keyhole Router Bit: Quick Guide

You’ve spent hours crafting the perfect floating shelf or picture frame, only to have visible screws or brackets ruin your clean aesthetic. The solution? Mastering how to use a keyhole router bit—a game-changer for creating hidden mounting slots that let your projects appear magically suspended on the wall. This specialized tool crafts T-shaped slots that conceal hardware while providing secure support for everything from delicate frames to heavy shelves.

Unlike standard router bits, keyhole bits solve the specific problem of invisible mounting with their unique stepped design. When you learn how to use a keyhole router bit correctly, you’ll eliminate visible hardware from all your wall-mounted projects while ensuring professional results every time. In this guide, you’ll discover precise techniques for flawless keyhole slots, troubleshoot common issues, and unlock advanced mounting applications for your woodworking projects.

Keyhole Bit Anatomy and Selection

Keyhole router bits feature a distinctive stepped profile that creates the signature T-slot mounting system. The lower cutting section, typically 1/4 inch in diameter, forms the wider entry hole where the screw head drops in. Above this, the narrower 1/8 inch cutting portion creates the vertical slot that locks the screw in place once slid into position.

Most keyhole bits measure 1-3/4 inches overall with either 1/4 or 1/2 inch shanks to match your router collet size. Carbide-tipped versions dramatically outlast standard steel bits, especially when cutting hardwoods like oak or maple. Standard sizes accommodate common #8 or #10 screws used for picture hanging hardware, so match your bit to the screw size you’ll be using for optimal performance.

Essential Safety Setup Before Routing

Safety must come first when learning how to use a keyhole router bit—these concentrated cuts generate intense sawdust that can obscure your vision. Always wear safety glasses, hearing protection, and a dust mask before powering up your router. Keep a shop vacuum handy to clear debris between passes, as accumulated dust can cause burning or inaccurate cuts.

Secure your workpiece firmly to your bench with clamps or hold-downs—any movement during routing creates dangerous kickback and ruins your slot alignment. For handheld operations, use a straight edge guide clamped parallel to your cut line. Router table users should install feather boards to maintain consistent pressure against the fence, preventing dangerous workpiece movement.

Perfect Router Configuration for Flawless Keyholes

Mount your keyhole bit with at least 3/4 of the shank inserted into the collet—this prevents dangerous slippage during the plunge cut. Set your cutting depth to accommodate the screw head plus 1/16 inch clearance, typically 3/8 to 1/2 inch total depth. Test this depth on scrap wood matching your project material before cutting your actual piece.

Variable speed control is crucial—set between 16,000-18,000 RPM for most hardwoods, slightly lower for softwoods. Too slow causes burning; too fast creates vibration that ruins cut quality. For handheld routing, set the depth stop precisely. Router table users should adjust bit height carefully, as even 1/16 inch variance affects mounting security.

Handheld Routing Technique: Step-by-Step

1. Mark both the entry point and slot path clearly with a pencil and square
2. Position the router base flat against the workpiece, aligning the pilot tip over your entry mark
3. Start the router and wait for full speed before beginning your cut
4. Plunge straight down to full depth in one smooth motion—never start cutting while plunging
5. Without lifting the router, move steadily along your marked line to create the slot
6. Maintain consistent forward pressure and speed—hesitation causes burn marks
7. Retract the bit completely before moving away from the workpiece

The critical mistake most beginners make is lifting the router after plunging. Keeping the base firmly planted ensures consistent slot depth and prevents tear-out on the exit cut. For fragile materials, apply masking tape over your cut line to support wood fibers during routing.

Router Table Method for Repetitive Cuts

Router tables provide superior control when you need multiple identical keyholes for shelf brackets or production work. Install the bit and set the fence parallel to your intended slot line, leaving just enough clearance for your workpiece. Mark both entry and exit points on your workpiece to prevent routing past your intended stop.

Lower the workpiece onto the spinning bit at your entry mark, using the fence as your guide. Push forward steadily with even pressure to create the slot, then lift clear at the endpoint. Feather boards are essential here—they maintain consistent pressure against the fence, preventing dangerous kickback and ensuring perfectly straight slots every time.

Troubleshooting Common Keyhole Routing Problems

Tear-out on the slot exit ruins otherwise perfect projects. Prevent this by using sharp bits and taking light passes. Apply masking tape over cut lines, especially on brittle species like cherry. If tear-out persists, try climb-cutting the final 1/8 inch of the slot—moving the workpiece against the bit’s rotation direction.

Inconsistent depth causes wobbly mounting and is often due to improper depth stop settings. Use positive stops on your router base or create physical stops on your router table. Always test cut depth on scrap matching your project material—wood density variations affect cutting depth.

Misaligned slots result in crooked mounting. Use a square to verify slot alignment with workpiece edges. When handheld routing, maintain consistent router base contact throughout the entire cut—any tilt creates angled slots that won’t engage properly with mounting hardware.

Advanced Mounting Applications

Floating Shelves

Space keyholes 12-16 inches apart along the back edge, testing with actual shelf weight before final installation. For shelves over 36 inches long, add a third centered keyhole for maximum support. Always create slots slightly deeper than needed—this allows for minor wall irregularities while maintaining flush mounting.

Picture Frame Systems

Position keyholes 2-3 inches from each top corner for frames under 24 inches wide. Larger frames benefit from three mounting points—two corners and one center. Use a level to mark both wall and frame slots simultaneously to prevent frustrating alignment issues during installation.

Angled Locking Slots

Rout slots at 5-10 degrees upward to create a positive locking mechanism. This prevents accidental lifting—a crucial technique for items in high-traffic areas or subject to vibration. Simply tilt your workpiece slightly against the fence on a router table or adjust your handheld router angle for this professional touch.

Quality Control and Final Mounting Tips

Always test keyhole slots with actual hardware before mounting your project. Verify screw head clearance and ensure smooth insertion without binding. Check that mounted items sit flush against the wall—any gap indicates depth or alignment issues requiring correction.

Mark wall stud locations before drilling pilot holes—keyhole slots make it easy to hit studs for maximum holding power. Use a level to mark mounting points, ensuring your keyhole slots engage perfectly with wall hardware. For drywall applications, use wall anchors rated for your project’s weight and test the mounting system gently before adding full weight.

Mastering how to use a keyhole router bit transforms your wall-mounted projects from amateur to professional-grade. With practice, these invisible mounting slots become second nature, opening endless possibilities for clean, hardware-free installations that showcase your craftsmanship rather than your mounting method. The next time you finish a beautiful woodworking project, make invisible mounting your signature touch.
