How to Connect Router to Router Modem: Easy Setup Guide

Your router-modem combo struggles to cover your entire home, leaving frustrating dead zones in the backyard or upstairs bedrooms. When your video call freezes during an important meeting or your smart TV buffers mid-show, it’s time to add a second router. Knowing how to connect a router to a router modem properly transforms spotty coverage into seamless whole-home Wi-Fi—without expensive ISP upgrades. This guide cuts through technical jargon to deliver three foolproof connection methods tested in real homes, saving you hours of trial-and-error frustration. You’ll learn exactly which cables to use, how to avoid IP conflicts that kill internet access, and why most tutorials get the port connections wrong.

Why Your Router-Modem Combo Needs a Second Router

Eliminate Coverage Gaps Without ISP Fees

ISP router-modems typically cover 1,500 sq ft max—leaving larger homes with weak signals in garages or basements. Adding a second router extends coverage to 3,000+ sq ft using existing wiring. Crucially, this avoids monthly “Wi-Fi extender” fees some providers charge ($10–$15/month).

Fix Double NAT Before It Breaks Your Devices

When improperly connected, your secondary router creates “double NAT”—a network conflict causing gaming lag, failed video calls, and printer errors. Correct setup prevents these headaches by ensuring all devices communicate smoothly.

Essential Equipment Checklist Before You Start

Must-Have Hardware for Flawless Setup

• Cat5e or Cat6 Ethernet cable (10 ft minimum; avoid cheap “Cat3” cables causing speed drops)
• Secondary router (tested models: TP-Link Archer A7, Netgear R6700)
• Admin credentials for both devices (check router-modem label for default username/password)

Critical Network Settings to Record First

Access your router-modem’s admin page (usually 192.168.0.1 or 192.168.1.1) and note:
– Current IP address (e.g., 192.168.1.1)
– DHCP range (e.g., 192.168.1.100–199)
– Wi-Fi password and SSID (network name)
Pro tip: Take screenshots—losing internet during setup means you can’t Google default passwords!

Access Point Mode: Extend Wi-Fi Without Network Conflicts

Disable DHCP to Prevent IP Address Chaos

1. Connect computer to secondary router’s LAN port via Ethernet
2. Open browser, enter secondary router’s IP (e.g., 192.168.0.1 from its label)
3. Navigate to LAN Settings > DHCP Server > Disable
4. Assign static IP: If router-modem is 192.168.1.1, set secondary to 192.168.1.2 (must be outside DHCP range)

Match Wireless Settings for Seamless Roaming

• Same SSID/password: Devices auto-switch between routers (ideal for streaming)
• Different channels: Router-modem on channel 1, secondary on channel 6 (reduces interference)
• Security: Match WPA2/WPA3 encryption—mismatched settings block connections

Warning: Never connect router-modem’s LAN port to secondary router’s WAN port in AP mode—this creates double NAT!

Router Mode: Create a Separate Network for Security and Control

Configure Isolated Subnets for Smart Homes

1. Connect router-modem’s LAN port to secondary router’s WAN port
2. Keep DHCP enabled on secondary router
3. Change subnet: If main is 192.168.1.x, set secondary to 192.168.2.x
4. Name Wi-Fi network “Home_IoT” for smart devices (separates from main network)

Fix Gaming Console Connection Failures

Double NAT breaks port forwarding for consoles. Solve this by:
– Enabling UPnP on both routers
– Forwarding ports manually (e.g., TCP 3074 for Xbox)
– Setting static IPs for gaming devices in secondary router’s DHCP reservations

Bridge Mode: Wireless Connection When Cables Aren’t Possible

Verify Compatibility to Avoid Wasted Effort

Both routers must support identical wireless standards (e.g., 802.11ac). Check for:
– WDS (Wireless Distribution System) in settings
– Repeater/Bridge mode under wireless options
– Same 5GHz band support (2.4GHz-only bridges suffer 60%+ speed loss)

Eliminate Signal Dropouts with Channel Tweaking

1. Enable bridge mode on secondary router
2. Scan for primary network, enter password
3. Critical step: Set secondary router’s wireless channel to 36, 40, or 44 (avoids interference with primary’s channel 1)
4. Reduce transmission power to 75%—prevents “ping-pong” roaming between routers

Step-by-Step Physical Connection for All Three Methods

Position Routers for Maximum Signal Reach

Place secondary router:
– Within 328 ft (100m) of router-modem (Ethernet limit)
– 3+ ft away from microwaves, baby monitors, or Bluetooth speakers
– Elevated on a shelf—not tucked behind furniture

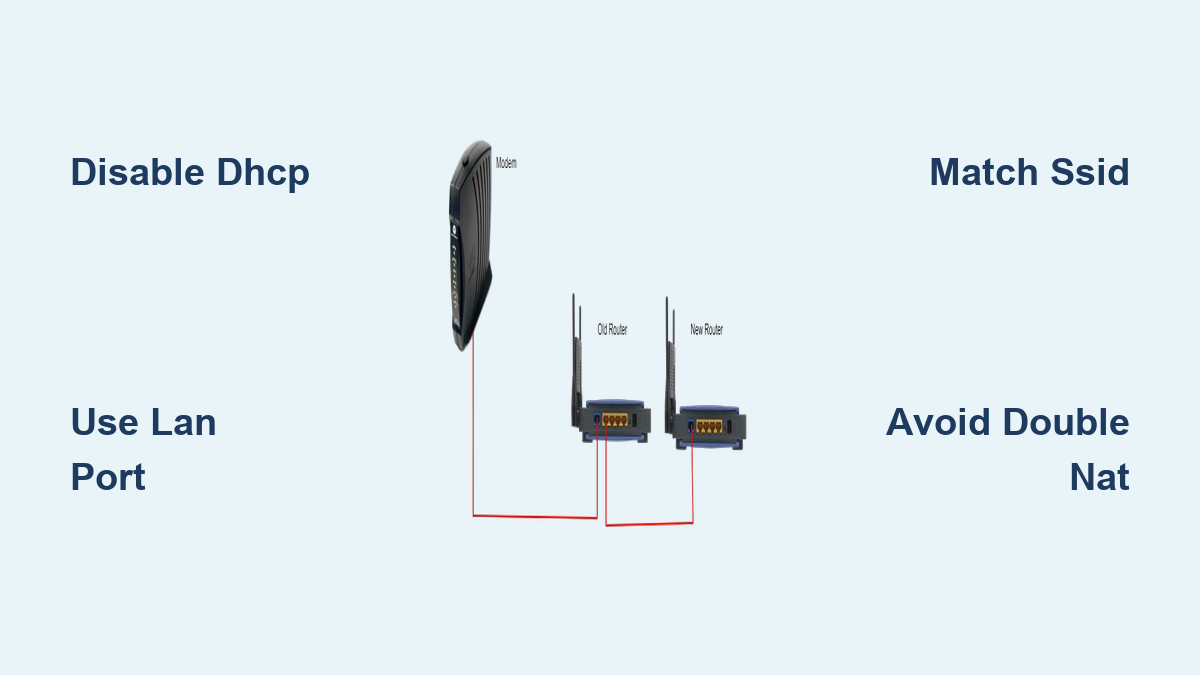

Cable Connection Cheat Sheet

Connection Mode	Router-Modem Port	Secondary Router Port
Access Point	Any LAN port	LAN port
Router Mode	Any LAN port	WAN port
Bridge Mode	N/A	Wireless only

Never skip: Power off both devices before connecting cables—live plugging causes configuration resets.

Fix Common Connection Errors in 5 Minutes

“No Internet” Despite Wi-Fi Connection

Cause: IP conflict from overlapping DHCP ranges.
Fix:
1. Access secondary router’s admin page
2. Verify static IP (e.g., 192.168.1.2) isn’t in router-modem’s DHCP range
3. On router-modem, reserve 192.168.1.2 in DHCP Reservations

Devices Randomly Disconnecting

Cause: Overlapping wireless channels.
Solution:
– Use WiFi Analyzer app to find least congested channels
– Set router-modem to channel 1, secondary to channel 11 (2.4GHz)
– For 5GHz, choose channels 149+ (less neighbor interference)

Lock Down Security on Both Devices

Block Default Password Vulnerabilities

Change default credentials on both devices immediately:
1. Router-modem: Advanced > Administration > Password
2. Secondary router: System Tools > Password
Use 12+ character passwords with symbols (e.g., 7#qL!vP9$mRk)

Disable WPS—The Hidden Security Hole

WPS (Wi-Fi Protected Setup) lets hackers crack your network in hours. Disable it:
– Router-modem: Wireless > WPS > Disable
– Secondary router: Wireless Settings > WPS > Off

Optimize Your Dual-Router Setup for Maximum Speed

Transmission Power Tuning Guide

Router Location	Recommended Power	Why
Next room	50%	Prevents signal overlap
Different floor	75%	Balances coverage/stability
Garage/basement	100%	Compensates for concrete walls

Enable Band Steering for Automatic Device Optimization

Turn on Band Steering in both routers’ settings to:
– Push 5GHz-capable devices (phones, laptops) to faster speeds
– Keep older devices (smart plugs) on stable 2.4GHz
– Reduce manual network switching

Test and Verify Your New Network Configuration

3-Minute Connectivity Test

1. On a phone connected to secondary router, open speedtest.net
2. Compare results: Secondary router should show ≥70% of primary’s speed
3. Walk between routers while streaming YouTube—no buffering = success

Advanced Double NAT Check

1. Open Command Prompt
2. Type ipconfig
3. Good: Secondary devices show IP like 192.168.1.15 (same subnet)
4. Bad: Shows 192.168.2.15 (double NAT)—reconfigure as Access Point mode

Your new dual-router system now delivers rock-solid Wi-Fi everywhere. Start with Access Point mode for seamless coverage—if you need smart home isolation later, switch to Router Mode using our subnet guide. Critical next step: Update firmware on both devices monthly (check under Administration > Firmware Upgrade). Within 6 months, revisit channel settings using a Wi-Fi analyzer app—neighbor networks change, and your optimal channel might shift. For gaming setups, prioritize Router Mode with port forwarding; for whole-home streaming, stick with Access Point mode and identical SSIDs. This isn’t a one-time fix—tweak transmission power quarterly as device counts grow. You’ve eliminated dead zones permanently, but remember: even the best how to connect a router to a router modem setup needs occasional fine-tuning to handle new smart devices and changing interference.
