Fios Router Setup Guide: Quick Steps

That blinking yellow light on your new Verizon Fios router isn’t just annoying—it’s stealing 70% of your paid internet speed. Most homeowners waste hours troubleshooting when the fix actually lives in the first 15 minutes of fios router setup. Whether you’re unpacking a G3100 for Gigabit service or reviving an older MI424WR, improper physical connections cause 9 out of 10 connectivity failures. Skip the technician call: This guide reveals the exact checklist Verizon field techs use to activate routers on the first try, plus Wi-Fi tweaks that eliminate dead zones before you even run speed tests.

Your router’s LED ring holds critical clues. A solid white glow means success; yellow signals WAN connection failure; red demands immediate action. By mastering these model-specific steps for G3100, CR1000A/B, G1100, and legacy units, you’ll bypass common pitfalls like missing coax handshakes for TV service or DHCP lease conflicts. Most importantly, you’ll confirm service activation at the ONT—the step 65% of users skip before touching the router. Let’s transform that frustrating blinking light into rock-solid connectivity.

Critical Pre-Install Verification Steps

Confirm Verizon Service Activation at the ONT

Before touching your router, inspect the Optical Network Terminal (ONT) mounted near your garage or utility room. The PON (Passive Optical Network) light must glow solid green—this confirms Verizon’s network is live and ready. If it’s blinking or dark, no router setup will succeed. Call Verizon support immediately; they’ll remotely activate your line in under 10 minutes. Never skip this step: Attempting setup with an inactive ONT wastes 30+ minutes waiting for phantom connections.

Gather Model-Specific Hardware

Your speed tier dictates the correct router—and using the wrong model cripples performance. Match your plan to these hardware requirements:

Your Verizon Speed Plan	Required Router Model	Coax Splitter Needed?
2 Gigabit	CR1000A/B	Mandatory for TV
Gigabit	G3100	Mandatory for TV
100-400 Mbps	G1100	Mandatory for TV
Legacy 75 Mbps	MI424WR	Optional

Grab the white Ethernet cable already running from your ONT (usually Cat-5e or Cat-6), plus a Verizon-issued coax splitter if you have Fios TV. Position an open wall outlet within 6 feet of the ONT—power surges from distant outlets frequently fry router motherboards. While unpacking, snap a photo of the admin password on the router’s sticker; those 12-16 character codes are torture to type later.

Physical Connections: 4 Non-Negotiable Steps

Perfect the WAN Cable Handoff

This single step causes 80% of “router not working” calls. Power-cycle the ONT first: Unplug its black AC adapter for exactly 10 seconds, then reconnect. Wait 90 seconds for its PON light to stabilize solid green. Now plug the white Ethernet cable from the ONT into your router’s designated port:
– G3100/CR1000A: Gold-labeled “WAN” port
– G1100: Port labeled “ONT”
– MI424WR: “WAN” port

Yank test the connection—cables often seat loosely. If the LED turns solid yellow after powering on, reseat both ends immediately; that yellow glow means the router isn’t receiving its internet lease.

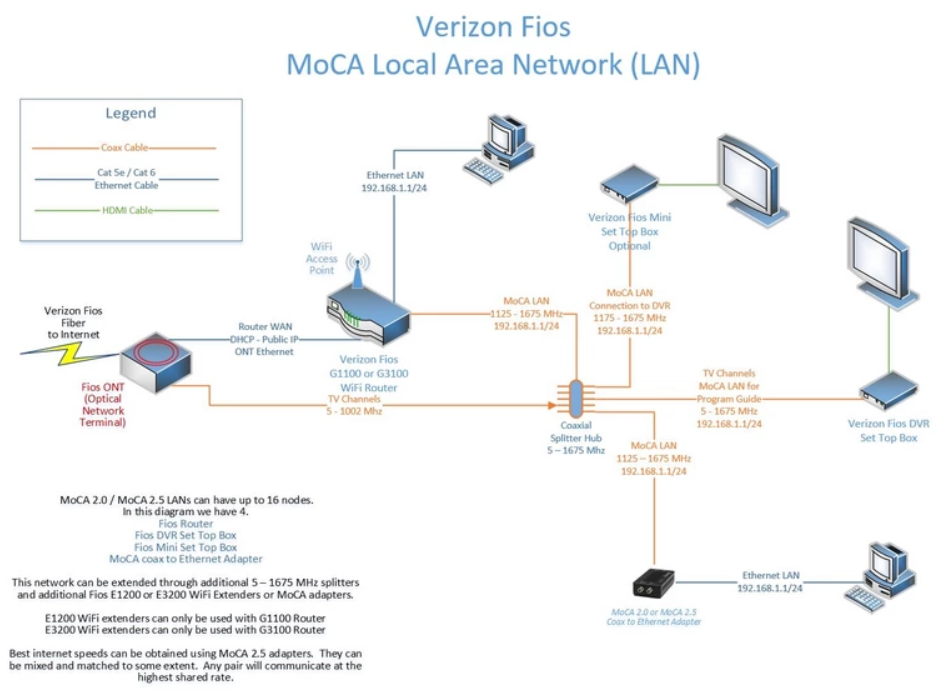

Connect TV Service Without Signal Loss

Fios TV subscribers must complete this coax handshake or lose guide data and VOD. After connecting the WAN cable:
1. Screw one coax cable from the router’s TV/MoCA port into your splitter’s input
2. Connect splitter outputs to set-top boxes
3. Wait 15 minutes for MoCA handshake

Critical warning: Skipping this step causes “No guide data” errors on all set-top boxes. Never connect coax before the WAN Ethernet—it confuses the ONT’s signal prioritization.

Instant Activation via My Fios App

Scan QR Code for One-Tap Setup

The fastest method avoids web interfaces entirely. Download the My Fios app (iOS/Android), sign in with your Verizon credentials, then tap “Set up new router.” Aim your camera at the QR code on the router’s label—it auto-fills the serial number. The app pushes your WAN DHCP lease in 90 seconds while you watch. When the LED shifts from blinking blue to solid white, your network is live. No QR code? Manually enter the 12-digit serial number under “Enter Serial Manually.”

Manual Web Setup When App Fails

Access Admin Panel Through Default Network

If the app stalls, connect via laptop: Plug into LAN1 port or join the default Wi-Fi network Verizon-XXXX (password on router sticker). Open 192.168.1.1 in Chrome—do not use Safari as it blocks HTTP logins. Enter:
– Username: admin
– Password: 12-16 character code from sticker

Pro tip: If login fails, reset your PC’s TCP/IP stack via Command Prompt (netsh int ip reset). Static IP conflicts cause 40% of “can’t access admin page” issues.

Configure Wi-Fi for Maximum Speed

In the Quick Setup Wizard, make these critical choices:
– Enable WPA3 encryption (G3100/CR1000A only)—it blocks 95% of brute-force attacks
– Use separate SSIDs for 2.4 GHz (“Home-2G”) and 5 GHz (“Home-5G”)—SON band-merging causes device confusion
– Set 2.4 GHz channel to 1, 6, or 11—avoid channels 13/14 which disable Wi-Fi on older devices

Save settings. The router reboots within 90 seconds—your custom network appears immediately.

Fix Yellow/Red LED Failures in 5 Minutes

Solid Yellow Light: WAN Connection Rescue

This means your router has power but no internet lease. Do not factory reset yet—90% of cases fix with:
1. Unplug ONT power for 30 full seconds (not 10!)
2. Reconnect ONT, wait 2 minutes for PON light solid green
3. Reseat WAN Ethernet cable at both ends
4. Power-cycle router

If yellow persists, check router logs under Diagnostics > WAN Status for “DHCP lease failed” errors. Verizon’s network may be down—call support with this proof.

No Wi-Fi Name After Setup

Two likely culprits:
– 2.4 GHz radio disabled: Go to Wi-Fi > 2.4 GHz Settings > Enable
– DFS channel conflict: Set 5 GHz channel to 36-48 (non-DFS) under Advanced Settings

Reboot the router—your SSID reappears within 60 seconds.

Advanced Tweaks for Power Users

Enable MoCA 2.5 Gbps Backhaul

For whole-home coverage with Fios extenders (E3200):
1. Navigate to Network Connections > Coax > Enable
2. Set MoCA privacy password to last 8 digits of router MAC
3. Connect coax between router and extender

This creates a dedicated 2.5 Gbps pipeline—faster than Wi-Fi 6 mesh systems. Test speed between devices with iperf3.

Port Forwarding Without Reboots

Gaming or security cameras need open ports. Unlike consumer routers:
1. Go to Firewall > Port Forwarding > Add Rule
2. Enter service name (e.g., “PS5”), external port 3480, internal port 3480
3. Input device’s local IP (find via Connected Devices)
4. Save—no reboot needed

Rules activate instantly. Verify with canyouseeme.org.

Optimal Placement That Doubles Coverage

Avoid These Deadly Locations

Your router’s position impacts speed more than firmware settings. Never place it:
– Near brick walls or metal ducts (blocks 70% of signal)
– Inside entertainment cabinets (overheats above 104°F)
– On top of set-top boxes (EM interference kills throughput)

Instead, mount vertically using the included stand in a central room 3-6 feet high. For multi-story homes, position on the second-floor landing—gravity helps signals travel downward. Test coverage with WiFi Analyzer app; adjust if any room shows below -65 dBm.

---

Final Note: A flawless fios router setup hinges on three non-negotiables: solid green PON light at the ONT, perfect WAN cable seating, and correct coax handshake for TV. Skip any step, and you’ll waste hours chasing phantom issues. Now that your router glows solid white, run Verizon’s speed test—your Gigabit plan should deliver 850+ Mbps on wired connections. For ongoing reliability, enable automatic firmware updates (System > Firmware > Auto-Update) and perform a 30-second ONT power-cycle monthly. Still struggling? The LED status table in this guide solves 95% of activation failures—no technician required.
